The Ruffle Shuffle!!!

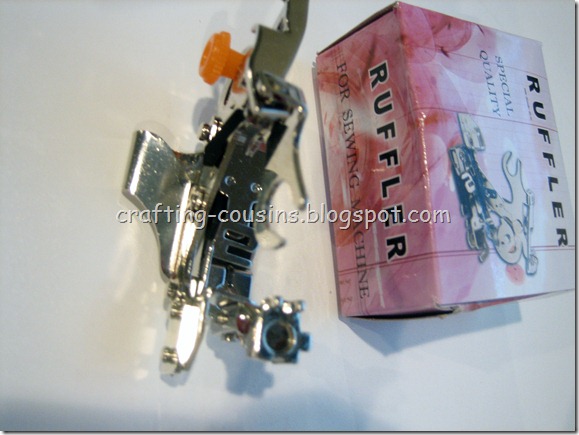

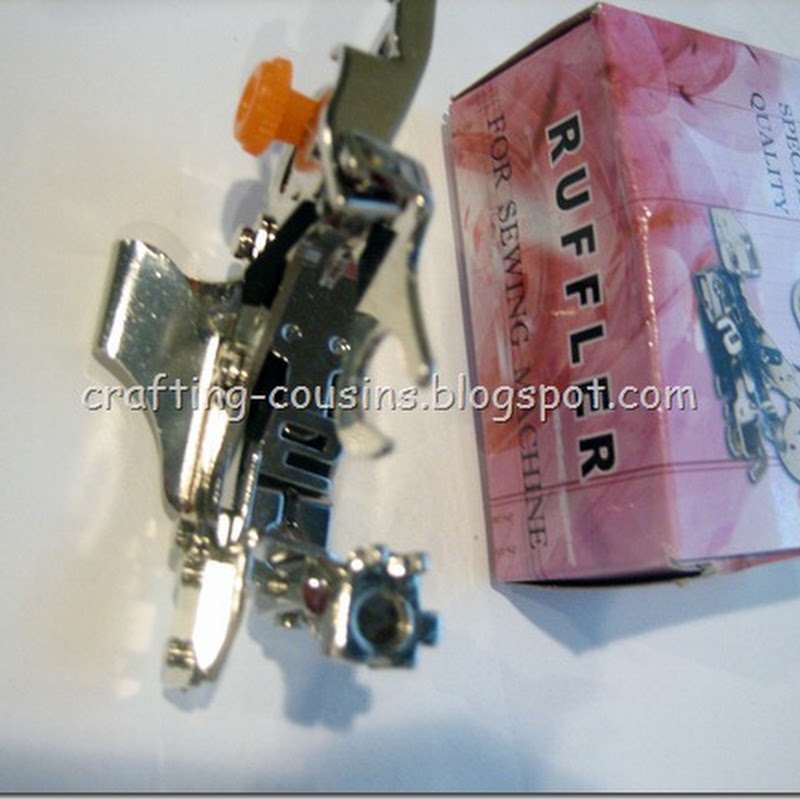

Continuing with our Sewing 101 series, this is a more complex, not exactly beginner level tutorial. But, I’m doing it now, because, well, I’m doing these as I get ideas of the best way to show the concepts. Cool? By the way, email or comment with specific things you want to learn, mkay? So here’s our guinea pig today. Meet the Ruffler foot.
Ruffler Foot How to (1)
Kind of intimidating, eh? A far-cry from this nice, safe, plain presser foot, right?

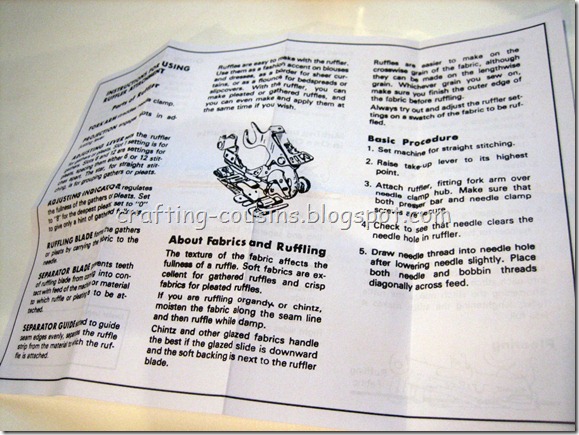

Yeah, I was plenty intimidated when I took it out of the box. And the only thing that came with it was this piece of vague paper…
Ruffler Foot How to (2)
Not super helpful. I did use a tutorial on Craftaholics Anonymous, and that helped me figure out how to put it on the machine, but I wanted more information, so here’s my tutorial.
First off, let’s look at this bad boy up close and personal…
Ruffler Foot How to (6) copy2

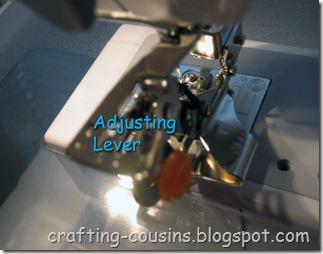

The very top has an adjusting lever, which lets you choose whether you’ll do pleats, gathers, or a straight line.
Ruffler Foot How to (6) copy

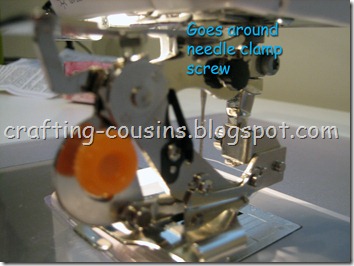

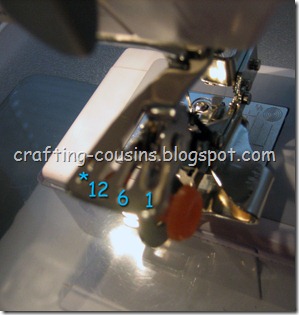

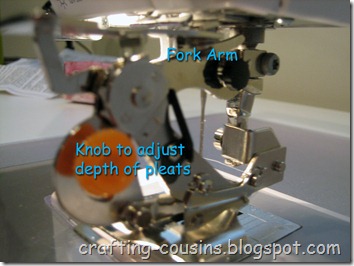

The * is straight line, 12 & 6 are pleats, and 1 is gathers. The adjusting lever is connected to the fork arm, which goes on the needle clamp.
Ruffler Foot How to (5) copy2
Ruffler Foot How to (5) copy

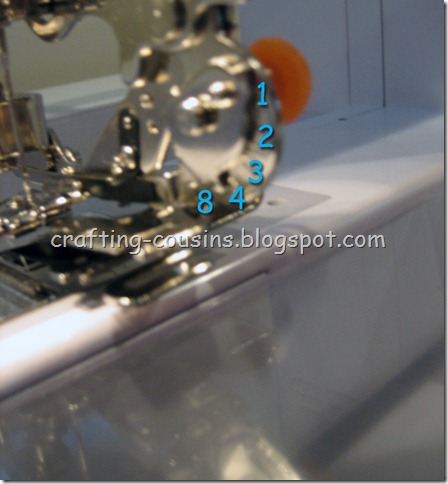

Basically, if you choose 12, your machine will sew 12 stitches, and then make a pleat. Mkay? Now, the orange knob on the side adjusts the depth of those pleats.
Ruffler Foot How to (8) copy
It tells your foot how much fabric to push back to make the pleat/gather.
Ruffler Foot How to (25) copy2

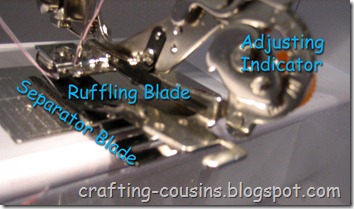

See the ruffling blade? It’s black, and it pushes the fabric underneath the needle. The very bottom of the foot has the separator blade, so you can sew your ruffle right onto your fabric. Pretty amazing! So, to put on the foot, you have to take off your other foot (and realize mine is a Bernina, so your presser foot may go on and off in a completely different way!), and then angle it like so to go on the shank and the fork arm goes around the needle clamp. Whew. If you’re not sure about parts of your machine, go here to see what all that meant!
Ruffler Foot How to (26)

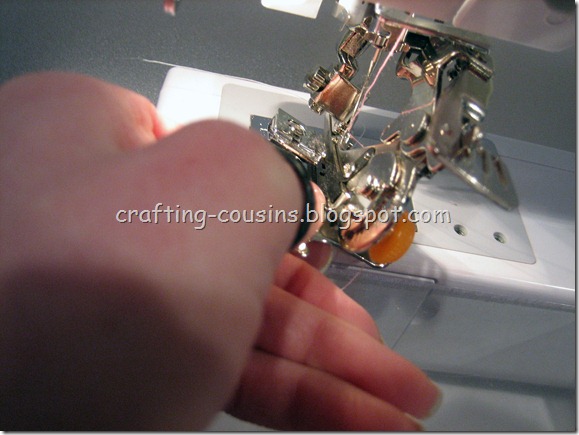

Awkward hand shot…
Ruffler Foot How to (27)

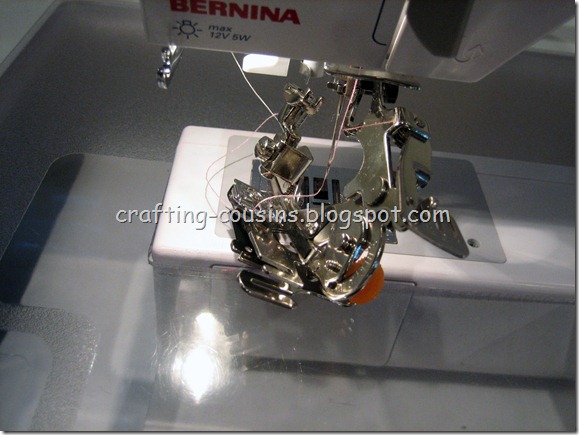

Okay, now it should be good to go. But how do you get the fabric in? First, let me share a tip that will help you not curse the stupid foot and blade and such.
Ruffler Foot How to (25) copy

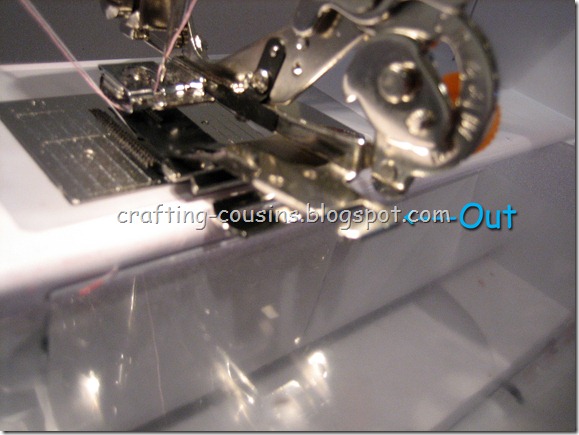

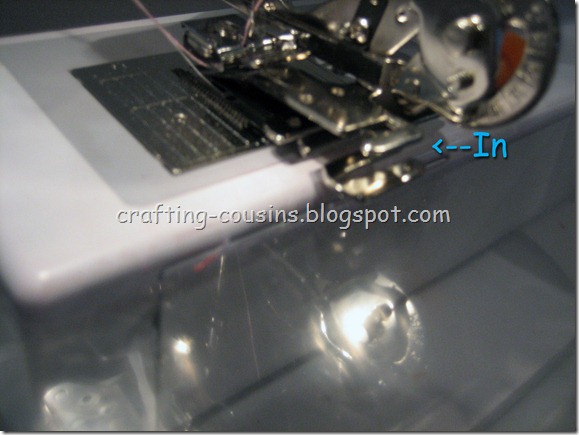

See the metal part sticking out? You want that in, and sort of lined up with the bottom blade. Like so.
Ruffler Foot How to (24) copy
This will help you get the fabric in and adjusted where you want it to be under your needle. Trust me, I’ve done it with it out, and it catches on the fabric and can put holes, and it’s just not pretty.Ruffler Foot How to (9)

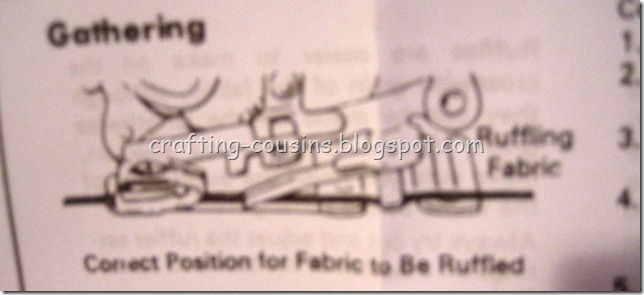

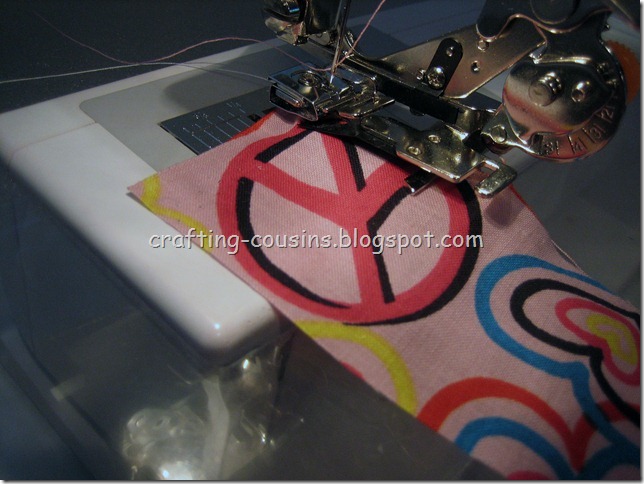

So here’s a picture with the fabric in the machine. One thing. My little manual that came with it said to put it in so that medal phalange is on top.
 Ruffler Foot How to (10)

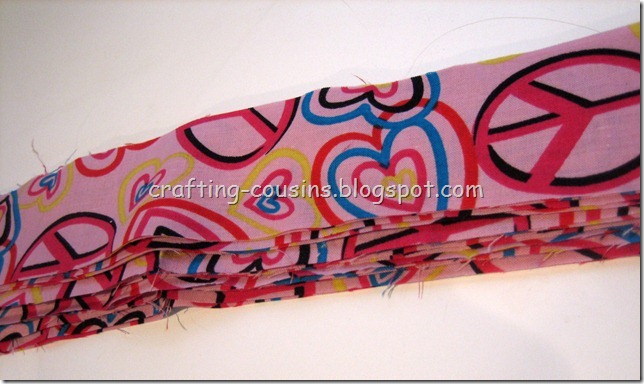

Don’t do that. It makes it so much easier to just slide it under the black blade thing. Then, you can sew at different parts of the fabric, instead of the very edge. You’ll see in the next pictures the ones that are done on the edge and the ones that are more in the middle… I used a stack of scrap fabric, all cut to the same size, to show you the different settings…
Ruffler Foot How to (3)
So, now the settings…What do the different numbers mean? If you choose 1 on the top, it means it will do a gather every stitch.
Ruffler Foot How to (11)

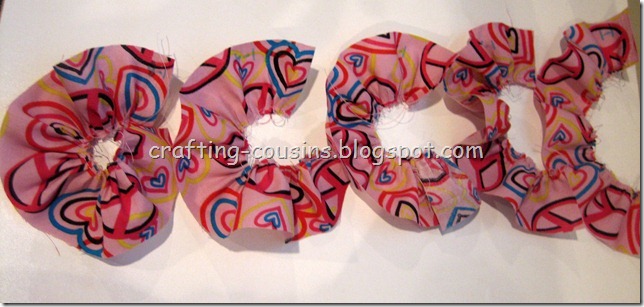

If you do a 1 with an 8 on the knob, you’ll get deep gathers/pleats. The one on the left is at a 1-8, and all are sewn at a stitch length of 3 (yeah your stitch length changes things too. So from left to right, the settings are 1-8, 1-4, 1-3, 1-2, and 1-1. I didn’t bother with 0, because it does just the tiniest gather and looks almost flat. Wanna see the difference with stitch length?

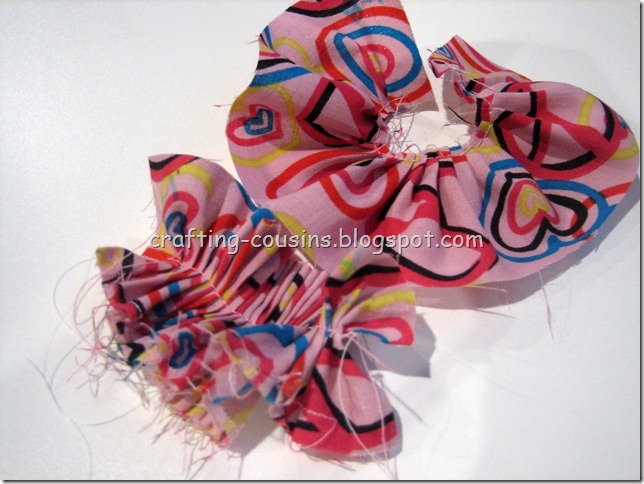

Ruffler Foot How to (22)
The one of the right is 1-8, stitch length 1 1/2, and the other is stitch length 3, also 1-8. Crazy, huh? Okay, onto 6.
Ruffler Foot How to (12)

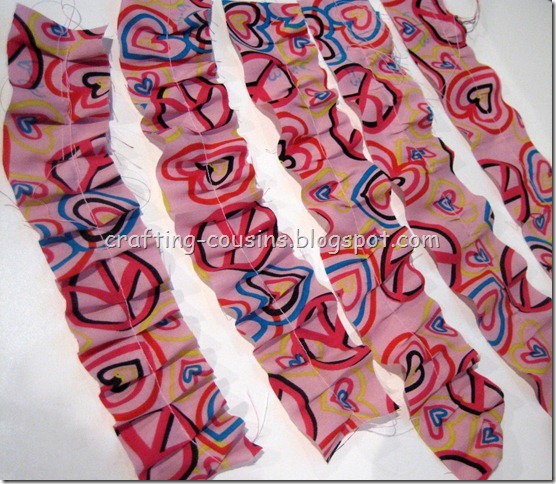

Again, left to right, 6-8. 6-4, 6-3, 6-2, and 6-1. You can see that 6-1 hardly has any gathering to it. I did all this with a stitch length 3 as well.
Ruffler Foot How to (15)

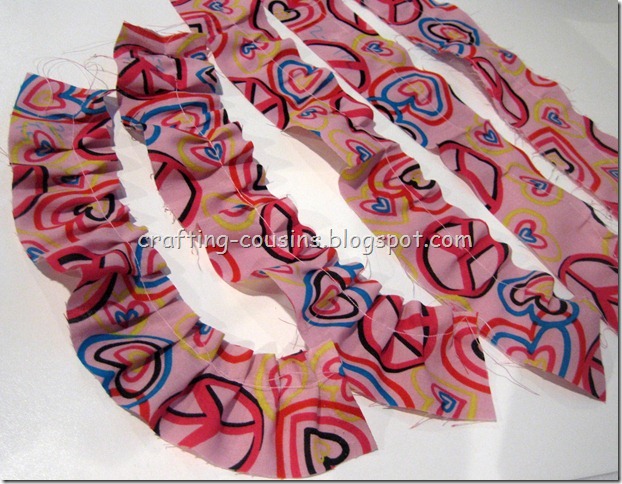

On setting 12, I did a stitch length of 1 1/2, because it didn’t seem to do be doing much on 3. So left to right on this picture is 12-8, 12-4, 12-3, 12-2, and 12-1, which is hardly gathered.
Ruffler Foot How to (17)

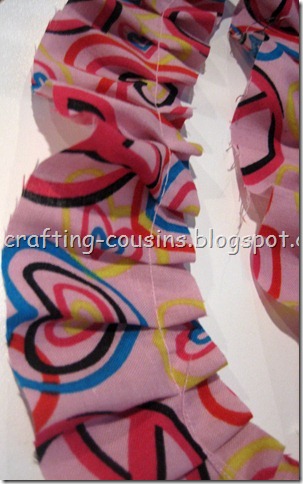

Here’s a close-up of 12-8 to see the depth of the pleats.
Ruffler Foot How to (18)

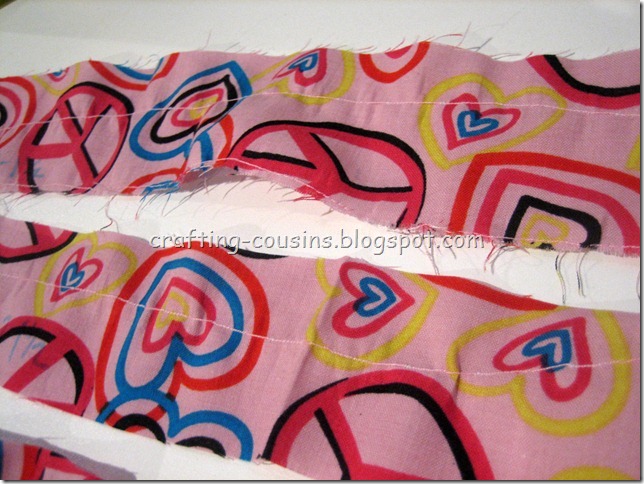

And a close-up of 12-2 and 12-1 to show the miniscule pleats.

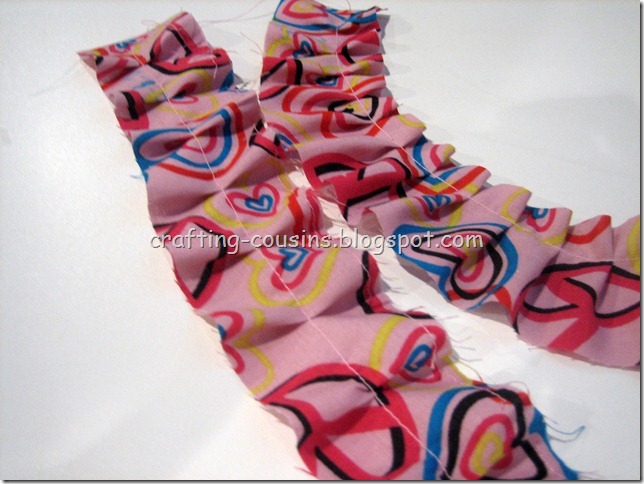

Ruffler Foot How to (20)
And just to compare, the one of the left is a 12-8, with a stitch length of 3, the right is stitch length of 1 1/2.

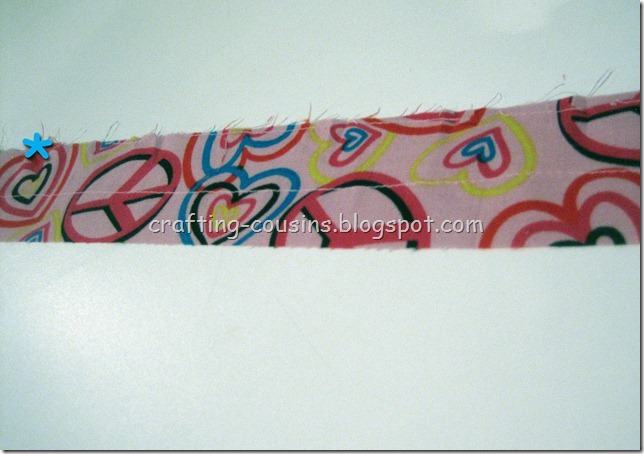

You’ll remember that there is a star on the top too? That is for sewing a straight line. Like so.
Ruffler Foot How to (23) copy
Now, if you were wanting to sew the ruffle to the fabric as you were going along, all you have to do is put the fabric you’re sewing to beneath the ruffler foot, with everything line up how you want. It’s a little tricky to keep things straight if you do, put a little practice helps. It took me most of this bedspread to get used to doing it as I was sewing down! Anyway, hopefully that’s a helpful overview, so email or comment if you have any questions, or something isn’t clear! Thanks for reading!
By the way, to get one of these, I mentioned you need to know high or low shank for your machine. I called a fabric store in town and they had 1 foot in stock for $40. I called joanns, and they didn't have anything. I called a local Bernina store and they were charging $114!!! I looked on eBay and found mine for $26 with free shipping. Amazon had some for around $20, but it didn't say my sewing machine model number in its compatible list. So eBay won!!
